Standard features
Rigid framework
Fully galvanised
Rubber suspension
Auto reversing brakes
Lockable coupling
Removable headboard
H.D. jockey wheel
Protective light boxes
Ramp store*
Floor anchors*
Tandem axels
18mm Phenol ply floor

*not standard in the smaller ranges

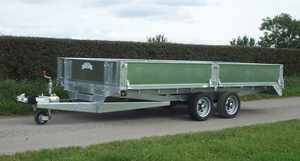

Flatbed trailer

Flatbed trailer
Flatbed trailer



Optional extras
Drop down sides
Loading ramps
Prop stands
Ladder rack
Alloy treadplate floor
Extension sides
Spare wheel

Gross Weight

Model

Length

Width

Wheel size

2000kg

Fb20 8

8ft

5ft

145/10

2000kg

Fb2010

10ft

5ft

145/10

2000kg

Fb2012

12ft

5ft

145/10

2500kg

Fb2510

10ft

6ft

195/13

2500kg

Fb2512

12ft

6ft

195/13

3000kg

Fb3010

10ft

6ft 6in

195/10

3000kg

Fb3012

12ft

6ft 6in

195/10

3000kg

Fb3014

14ft

6ft 6in

195/10

3500kg

Fb3512

12ft

6ft 6in

195/13

3500kg

Fb3514

14ft

6ft 6in

195/13

3500kg

Fb3516

16ft

6ft 6in

195/13

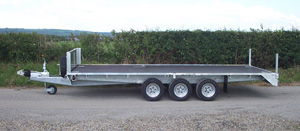

3500kg Tri-axel

Fb3512T

12ft

6ft 6in

195/10

3500kg Tri-axel

Fb3514T

14ft

6ft 6in

195/10

3500kg Tri-axel

Fb3516T

16ft

6ft 6in

195/10

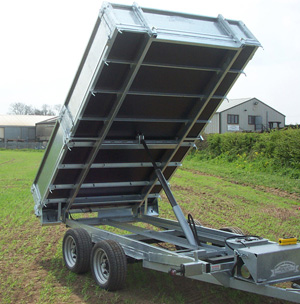

Tippers

Gross Weight

Model

Length

Width

Wheel size

2000kg

TP85

8ft

5ft

145/10

2600kg

TP106

10ft

6ft

195/10

3500kg

TP106

10ft

6ft 6in

185/13

3500kg

TP126

12ft

6ft 6in

185/13
